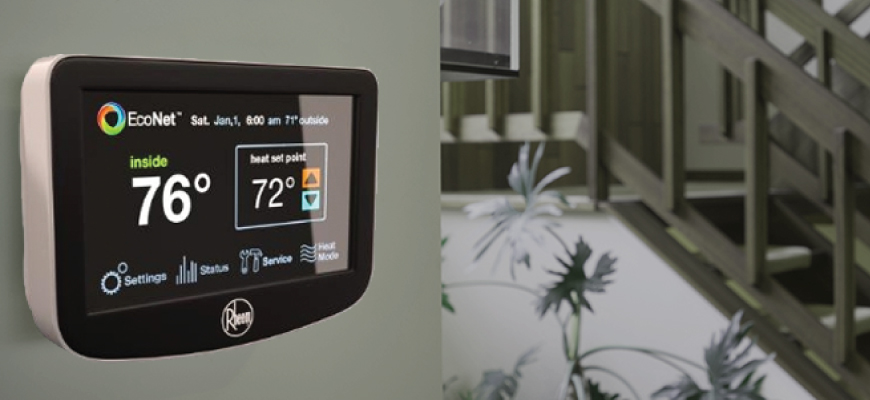

Replace your old thermostat to eliminate ugly, steel or discolored plastic housing – thermostats with sleeker, more cost-effective electronic-show thermostats. Thermostats made using change knob or a tab usually have a glass vial of mercury which is used to to operate the furnace before 2005. These thermostats may be safely re-cycled at HVAC wholesale distributors, that there are more than 350 350 selection areas in California, to make sure that mercury is re-used.
Turn off the power to the thermostat in the circuit breaker box of your house.
Pick out the housing from the thermostat. Remove the screws which are holding the thermostat and pull the thermostat from the wall.
Examine where the wires are attached to to the final screws of the thermostat. There’s a wire for the heater and there might be a wire for the AC at the same time. The final screws for every single device the thermostat is attached to to should be marked with letters like RC, Y, G, W and R. Wrap a bit of masking tape around each wire to to make a tag together with the tape before you eliminate the wires. Mark the tape with the letter designation of the final of every wire screw using a felt-tipped pen.
Loosen the terminal screws using a screwdriver and unhook the wires in the screws. In the event the wires want to pull-back to the wall, tape them down with masking tape to to keep them. Put the thermostat in a secure location as most aged thermostats include glass tubes so you could recycle it correctly.
Remove the thermostat’s mounting-plate screws and go unusual. Hold the thermostat plate up to the wall to verify whether you need to drill holes for the -plate screws. In the event that you do, as versions certainly are a different-size and form than thermostats that are older, contain the the plate check always its position having a carpenters le Vel and alter appropriately to make it straight and even. Mark the areas for screw-holes on the wall using a pencil.
Drill holes into the wall in the pencil marks. Before the ends are flush with all the wall drive drywall anchors to the wall using a hammer. Place the mounting plate on the wall, thread the wires and then set the screws that are offered to the dry wall anchors and tighten them using a screwdriver.
Inspect the ends of the wires that are thermostat. Whenever they corroded or are frayed, use wire-cutters to cut the ends off. Strip 3/4 inch of the insulation jacket off to expose the steel underneath.
Loosen the thermostat’s screw terminals. Wrap the wire together with the letter clock-wise around each screw final. Tighten the screws. In the event that you discover the screw final designations are diverse on the thermostat, the guidelines that included the packaging of the thermostat should have a chart or directions to direct you using the wiring method. For those who have wires marked C C 1 or C that connected to final screws on the outdated thermostat, don’t link them. Separate the C-1 and C wires in the wires. Wrap the end-of the C-1 and C wires to totally protect the metal conclusion that is bare. Insert the wires to the wall. Wrap the ends whether there are any wires in the wall close to the aged thermostat that weren’t attached to to the outdated thermostat and place them to the wall.
Push the wires in to the wall. Insert the offered batteries to the thermostat as-needed. Attach the thermostat to the wallplate by snapping it in to spot and sliding the tabs of the wallplate to the again slots of the thermostat. Turn the power-back on in the circuit breaker box.
